Applications: widely used in Construction, Home Appliance, Hardware, Machinery, Automotive Industry, etc.
Key Features:
▸Corrosion Resistance – Zinc coating provides basic protection against rust.
▸Workability – Easy to form, bend, and weld for various applications.

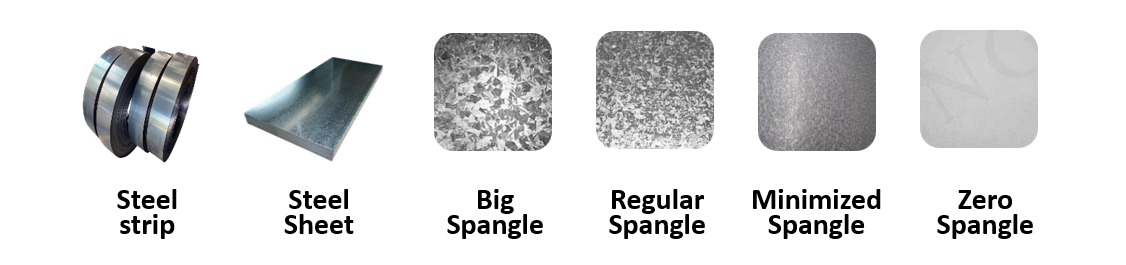

▸Surface Finish – Smooth or spangled surface options for different needs.

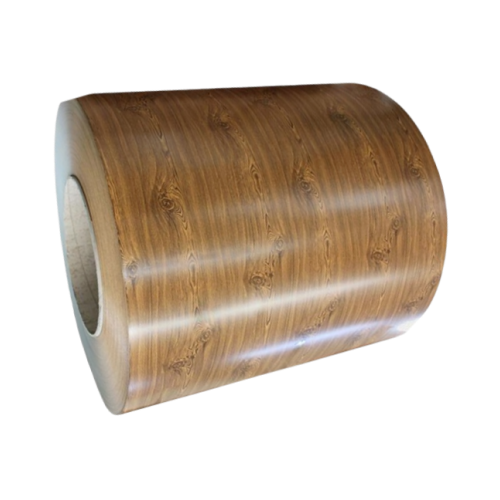

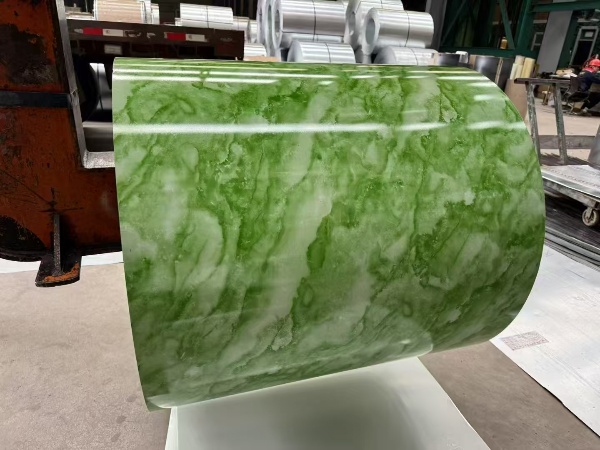

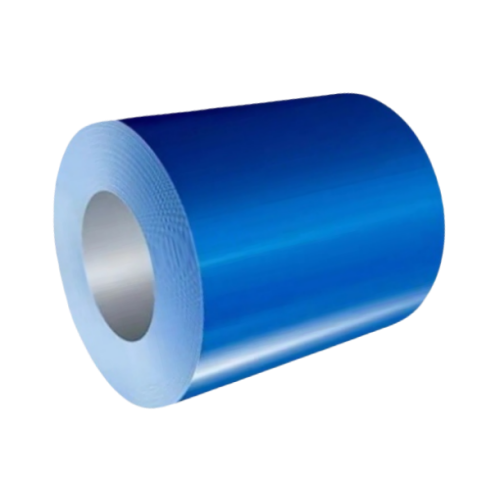

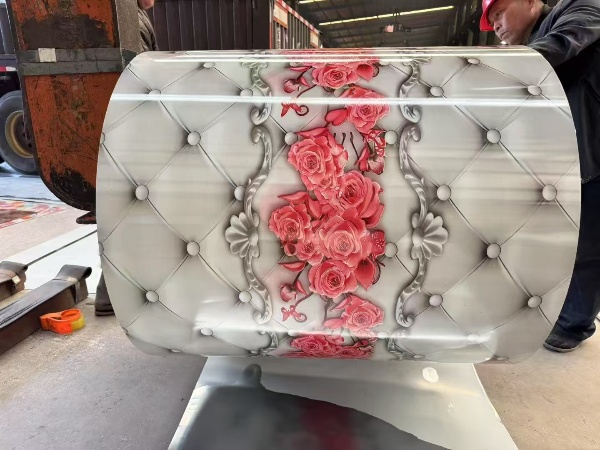

▸Aesthetic Appeal – A wide range of colors, and custom designs for versatile looks.

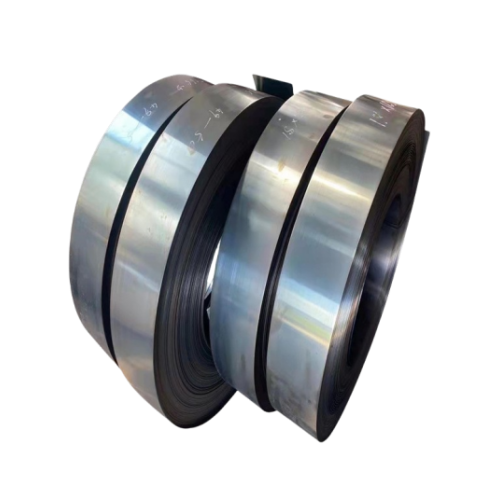

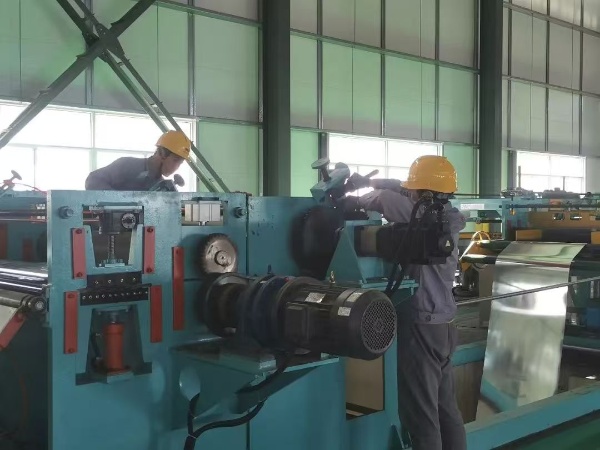

▸Processing – Slitting and flattening available for custom sizes and applications.
Specifications:
Type
of substrate

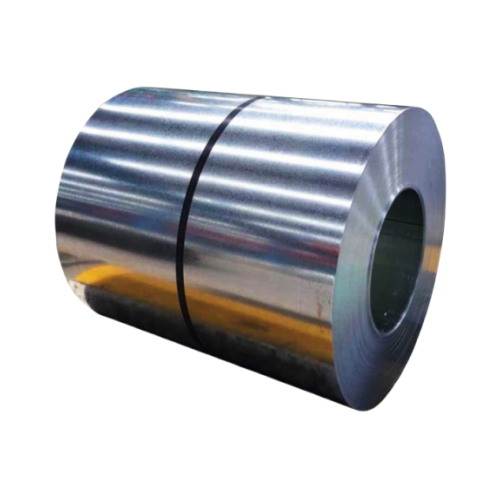

Galvanized
(GI) or Galvalume (GL)
Material
CGCC/G350/G450/G550/DX51D/DX52D/DX53D
Standard
EN10147, EN10142, DIN 17162, JIS
G3302, ASTM A653
Thickness
0.12
– 2.5 mm
Zinc
Coating
Z30-275g/㎡,
AZ30-150g/㎡
Paint Coating
Top:
5+(10-25)μm, Back: 5-15 μm
Coating
Types
PE,
SMP, PVDF, HDP
Width
600 –1250 mm
Coil
ID
508
/ 610 mm
Coil
Weight
3
- 9 tons
Package
Export standard package or as request
